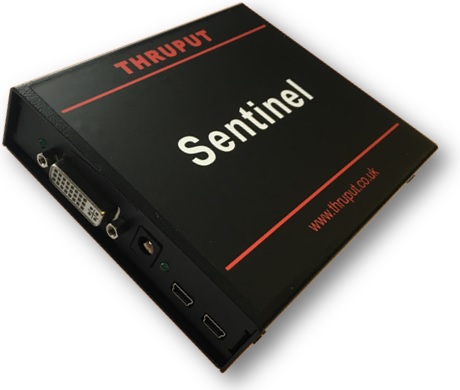

Sentinel DVI Dual Link Recorder

Sentinel DVI Dual Link Recorder

The Sentinel high resolution recorder system uses Truepixel™ Technology to provide both the highest quality and highest speed video recording system available for any resolution, up to 5 megapixels, and is capable of capturing 2048 x 2048 or 2560 x 1600 systems.


 The system is fully operational with radar data, user input data and audio data recording systems, to provide a fully synchronised multi-channel replay and investigation facility.

Key features

  • (ATC) At-The-Glass Recording up to 2048 x 2160, 2048 x 2048 or 2560 x 1600 resolution
  • True lossless recording, with continuous quality monitoring
  • Deterministic with typical compression in the range 3,000:1 and 5,000:1 frame to frame
  • Dual redundant LAN communications
  • Multi-redundant Power supply
  • Time stamp on capture
  • Remote control via SNMP


  • True record of ‘what the Controller actually saw’.
  • Fully Independant.
  • No common failure modes with system being recorded
  • For digital failsafe mode,  use Dual Link DVI Splitter GF VTCT-PA.
  • No impact on the system being recorded.
Data Sources 1 DVI dual link
2 x USB mini.
Networking 2 x RJ45

1000baseT Ethernet.


SNMP Management.
Power Supply options. Only one required. Dual power over Ethernet.
Dual power over USB.
5V external (offline use).
Physical Case: 12.7cm x 10.3 cm.
MTBF 191,000 hours (MIL HBK 217F).
